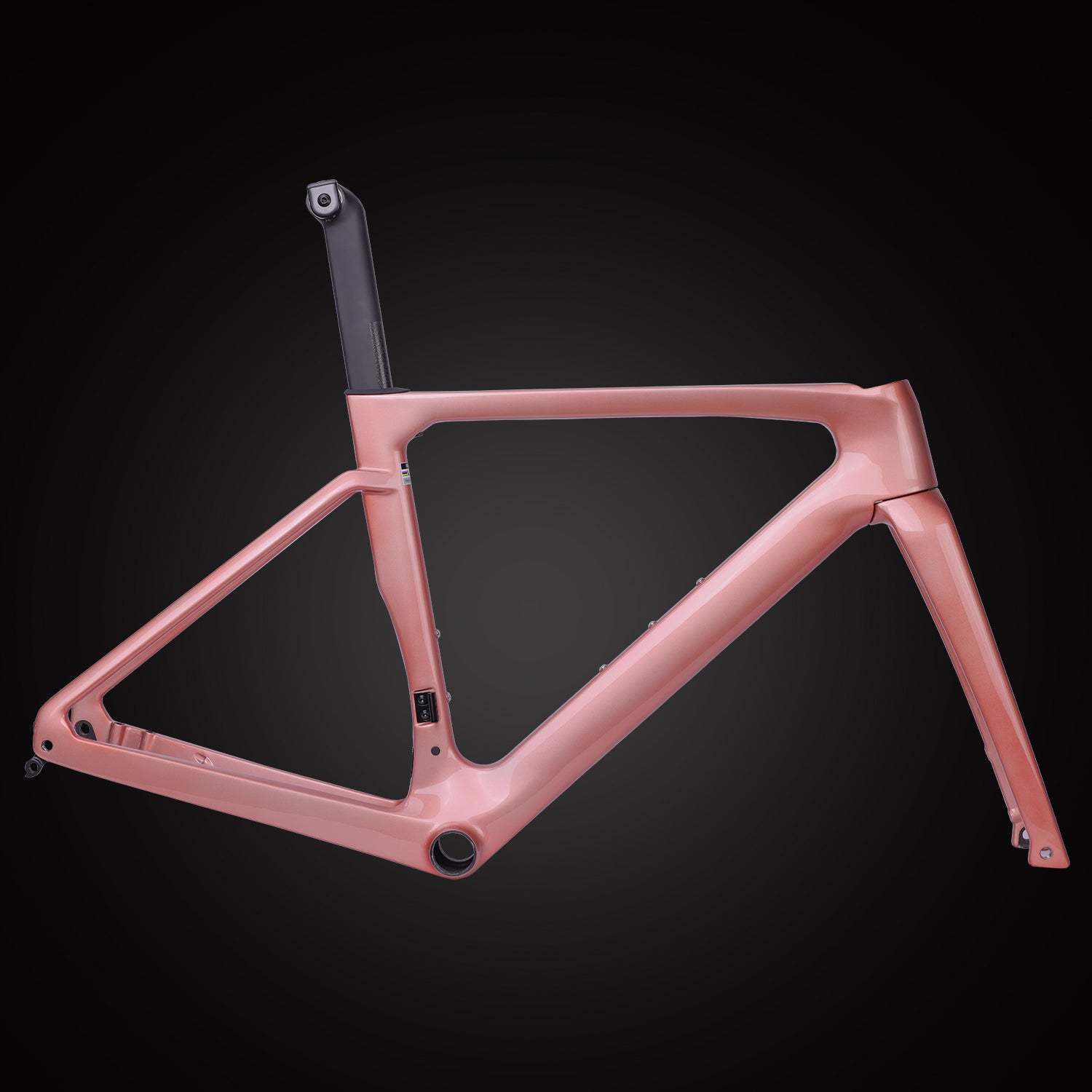

rennrad frameset A9 Carbon Disc Racing Bicycle Frame Set

rennrad frameset A9 Carbon Disc Racing Bicycle Frame SetIntroduction The A9 frame is crafted with precision and uses advanced carbon fibre technology. It embodies the perfect balance of lightness and exceptional strength. Its streamlined shape increases speed and efficiency, making it the ideal choice for competitive racing or demanding road cycling. The frames geometry has been carefully designed to offer optimal comfort, handling, and power transfer, ensuring an outstanding riding experience. The A9

Introduction

The A9 frame is crafted with precision and uses advanced carbon fibre technology. It embodies the perfect balance of lightness and exceptional strength. Its streamlined shape increases speed and efficiency, making it the ideal choice for competitive racing or demanding road cycling. The frame’s geometry has been carefully designed to offer optimal comfort, handling, and power transfer, ensuring an outstanding riding experience.

The A9 frame can be painted according to your wishes, and the paint design can be created directly on our 3D paint design website. Give it a try.

3D paint design website: http://icancustompaint.com

Specification
Type: Carbon road disc frame
Tires: 700C*28C
Material: Carbon fibre T800 & T700
Finish: UD matte/glossy/painted
Rotors: Flat mount, front 160 mm, rear 140 mm
Thru-axle
Front: 100 x 12 mm
Rear: 142 x 12 mm
Weight:
Frame: 1090 g,
Front fork: 410 g
Seatpost: 320 g (52cm without paint)
Head tube: 1-1/2'', 1-1/2''
Size: 46/49/52/54/56/58 cm
Stem: 90/100/120 mm (5° angle, fixed)
Please note the desired size when purchasing.
Handlebar:
400 mm/420 mm/440 mm
Please note the desired size when purchasing.
Cables: All internal cables
Bottom bracket: BB86

Features:

Streamlined Design:

The ICAN A9 frame features a streamlined design carefully developed to reduce air resistance while optimizing airflow. This leads to a significant increase in overall speed. This feature makes it the ultimate choice for cyclists seeking enhanced performance, ensuring a seamless blend of cutting-edge aerodynamics and outstanding speed capabilities.

Lightweight Construction from Carbon Fibre T800 & T700:

Focusing on weight reduction without compromising strength, the A9 frame is built from advanced materials, resulting in a lightweight build that improves agility and responsiveness during rides.

Internal Cable Routing:

The main advantages of a fully internal cable routing system include improved aerodynamics, reduced air resistance, and an overall sleek and tidy appearance. By hiding the cables inside the frame, the bicycle not only cuts through the wind more efficiently but also presents a polished and streamlined aesthetic. Additionally, internal routing reduces exposure to external elements, contributing to improved durability and lower maintenance needs. This design choice prioritizes not only performance but also highlights the overall look of the ICAN A9 racing bike, making it an ideal choice for riders who value both form and function.

Multifunctional Compatibility:

The ICAN A9 frame was designed with versatility in mind and offers compatibility with both mechanical and electronic shifting groups. This feature allows cyclists to tailor their riding experience based on personal preferences and specific race regulations.

Stiff and Equipped with BB86 Bottom Bracket:

The frame’s stiffness ensures efficient power transfer from the rider to the wheels, resulting in a more responsive and energy-efficient cycling experience. The BB86 bottom bracket standard offers several advantages in cycling. This setup, characterized by an 86.5 mm wide shell with press-fit bearings, improves overall stiffness and power transfer in the bicycle frame. The wider base of the BB86 provides a sturdy platform for the crankset, reduces flex, and ensures efficient energy transmission from the rider to the drivetrain.

UCI Certification:

The ICAN A9 frame is certified and approved by the Union Cycliste Internationale (UCI), which governs international cycling. Only products that pass strict tests receive this certification and are allowed in UCI-sanctioned road races.

Geometry
